Instrument Provides power to DUT using a high-power relay, to lower start current and avoid sparks.

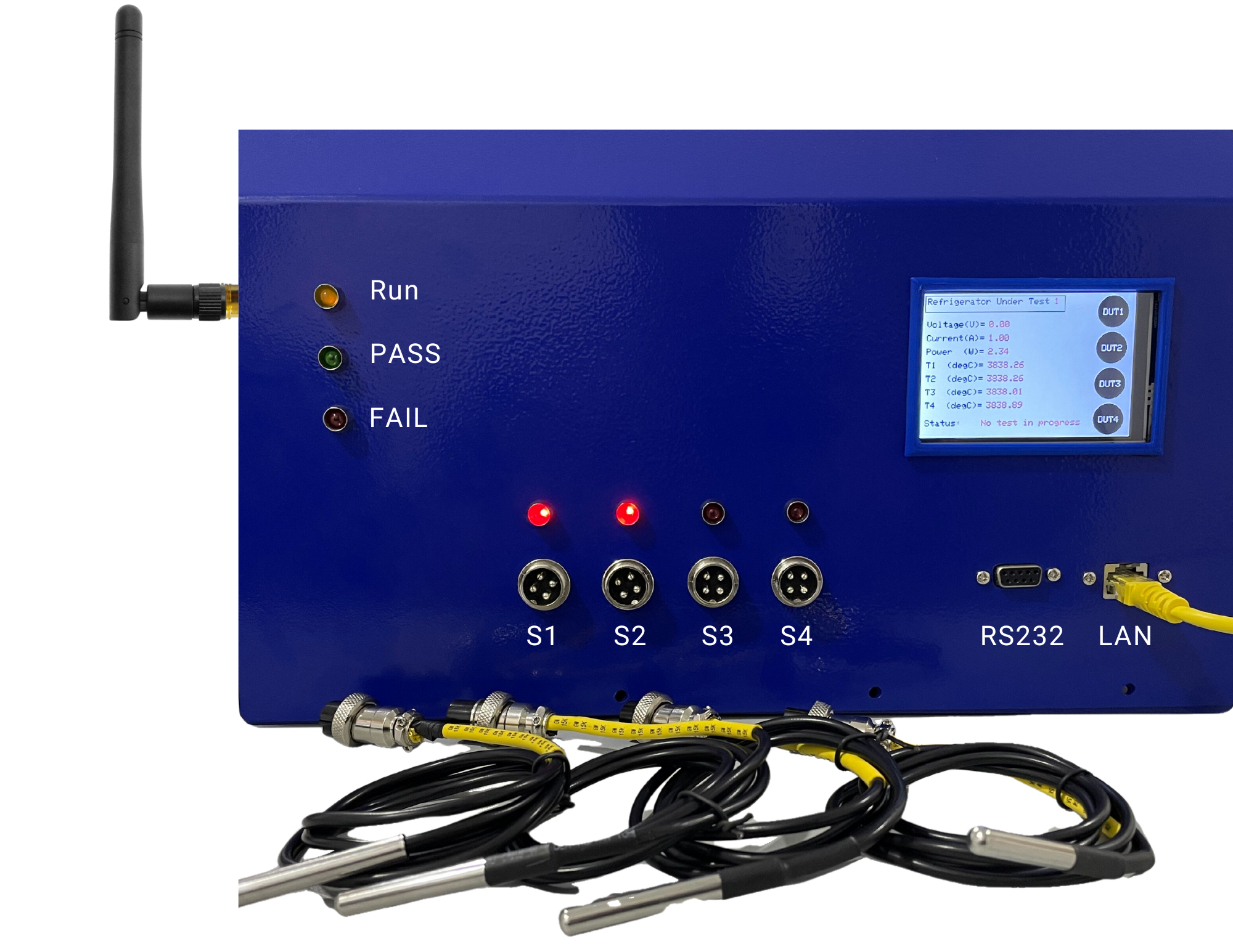

4 integrated Temperature and humidity sensors (3 meters cable for each sensor).

-40~85°C (±0.2°C measurement accuracy).

0~95%RH (±0.2%RH measurement accuracy).

10A 1PH or 3PH DUT nominal current (0.1A measurement accuracy).

Real time test data visualization on the TFT display.

Sensor fault indication.

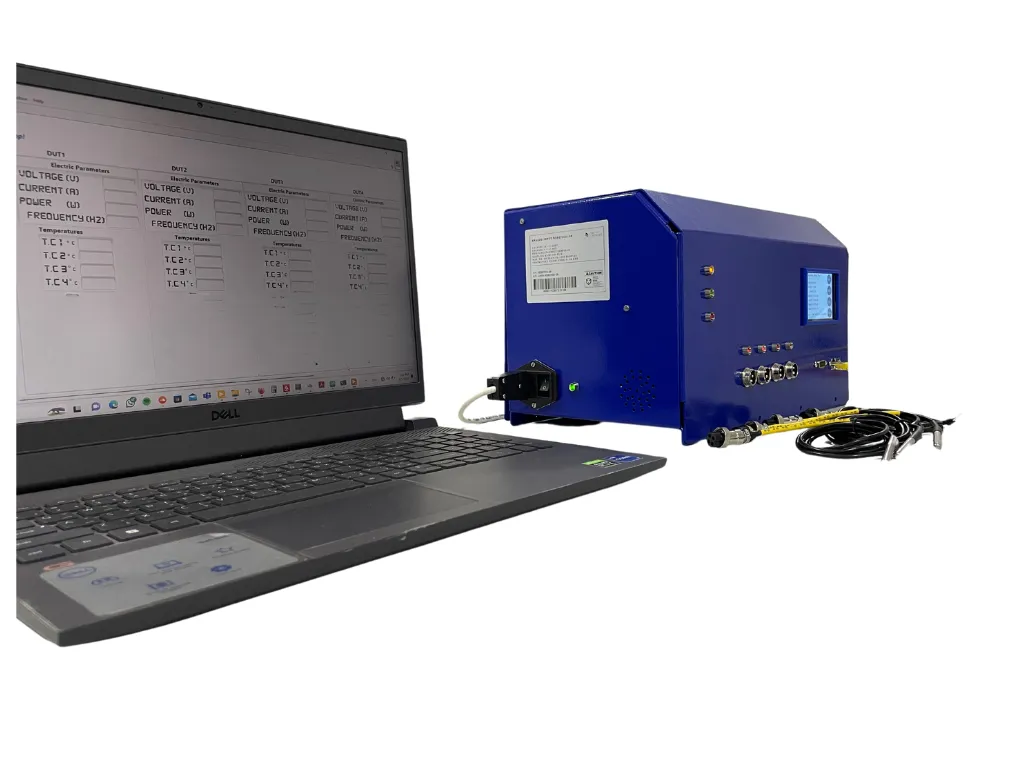

Host PC running SW can connect to multiple instruments through network (up to 32 DUTs).

Reliable independent parallel connection between instruments (not daisy chain).

Available in wired or wireless instruments to Host PC connection.

Short circuit protection for DUT and the instrument itself.

Ability to connect Remote Display Unit (RDU), to display real time test data apart from the instrument.

User-friendly Software, that manages the test process, logs data and generate reports.

Ability to link the Software to existing ERP or SAP systems.

Ability to customize the whole solution, to adapt to the client’s requirements.

Communication diver (along with LabVIEW library) Available to self-develop custom Software.

Conformal-coated electronics.
